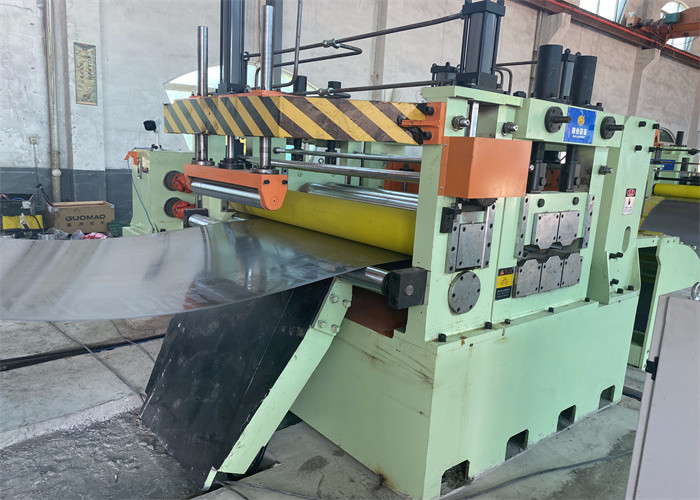

Stainless Steel Coil Slitting Machine In High Precision ( 0.3 -3 x 1600)
High Precision Stainless Steel Sheet slitting machine has very strong structure and requires very precise manufacturing.
Stainless steel, such as SUS200, SUS300, SUS400 series, compared with normal carbon steel Yield strength ≤270Mpa Tensile strength≤465Mpa, STS has more strength Yield strength ≤550Mpa Tensile strength≤780Mpa.
.
Stainless steel sheet is high quality steel, requires high precision high quality slitting. STS sheet surface is bright, should be well protected in slitting and recoiling process, the transmission rollers will be rubber coated.
Composition and Characteristics
1. Very Strong decoiler and coil opening press roller and peeler shoveling plate, to hold steel coil steadily in time of steel strip being pulled out, and send strip head into pinch feeding equipment.
2.Slitter: slitter stands, shafts, knives are bigger and stronger than normal slitter. Drive motor power is about 50% more than normal model slitter.
3.All transmission rollers are PU rubber coated to avoid STS sheet surface from scratch.
4.Accumulator pit loop is longer and deep enough to make sure steel strip accumulating.
5.Tension provision unit own both roller and wool felt to provide adjustable stable tension for recoiling.
6.Recoiler has portal frame type overarm separator, from top to press separating strips.
7.Slitting speed usually are limited within 80m/min.
8.Slitting knives will be special material SKD11, H13K, SLD,etc.
9.Hydraulic system, such as hydraulic cylinders, valves, should be robust and more durable.
Slitting Precision:
- Slit widths tolerance:≦0.10mm; Slit width＜300mm, thickness ＜1.2mm, slit width tolerance≦0.05mm;
- Slit camber:≦0.5mm/M for strip of wider than 300mm, ≦1.0mm/M for strip of <300mm. The edge strips within 100mm of mother coil edge are not in the restriction.
- burrs:≦0.05mm, or say, no more than 5% of over 1mm thickness strip slitting at stable speed under conditions of sharp knives and proper knife gaps.
- Recoil staggering≦±0.5mm (at stable speed, speed change not so fast
- Recoil turriform:≦±2.0mm (at max coiling diameter
Layout Process:
Coil preparing saddle, Coil loading Car, Single mandrel Uncoiler with press roller, Coil head peeler, Pinch feeder & 5 roller Pre-leveler, Shear, Pit loop 1, Side guide, Slitter, Scrap winder, Pit loop 2, Tensioner and Pre-separator, post shear and deflector roller, recoiler with overarm separator, coil discharging car, (turnstile)
Parameters:
| Slitting Line 0.3 -3 X 1600 120mpm | Parameters |
| Coming steel coils | ID508mm, 610mm, OD1800mm, coil weight 20T |
| Finished baby coils | ID508mm, OD1800mm, coil weight 20T max |
| Mother coil width | 300-1600mm |
| Baby coil widths | 30mm -600mm |
| Number of slitting | 1mm x 30slits; 3mm x 15slits |
| Main motors | Slitter 132KW + Recoiler 160KW |
| Slitter knife | ID240 x OD360 x 20mm SKD11 HRC58-61 |
| Recoiler mandrel | Seamless mandrel |
| Optional | Fast exchange slitters, unloading turnstile |
| Slitting speed | 0-120-150mpm adjustable |
| Configuration | Siemens PLC, Parker Drive, Vitory Valves |
| Slitting precision | Slit width ±0.1mm; Camber ±0.1mm/m; bur 5% of thickness; recoil hump<0.5mm |
